The Standard of Excellence for North American Waterworks
In the demanding landscape of US municipal water distribution and fire protection systems, compliance with AWWA C515 is the benchmark for performance. Veyron Valve’s resilient seated gate valves are engineered specifically to meet this reduced-wall ductile iron standard, offering the same 250 PSI pressure rating as traditional C509 valves but with a significantly lighter weight profile. This design shift allows for easier field handling and reduced freight costs without compromising the structural integrity required for buried service.
Engineering for Longevity: The NRS and OS&Y Configurations
We provide our AWWA C515 series in both Non-Rising Stem (NRS) and Outside Screw and Yoke (OS&Y) designs to suit diverse installation needs.
- Fire Protection Synergy: Our OS&Y models are widely utilized in fire sprinkler systems and are UL Listed and FM Approved. The visible stem provides a clear "open/closed" status, which is a mandatory safety requirement for many commercial fire suppression codes.
- The Operating Nut Advantage: For buried municipal lines, our NRS valves are equipped with a standard 2-inch square operating nut. This allows utility teams to operate the valve from the surface using a standard T-key, ensuring reliable torque transmission even after decades of being submerged in soil.
Internal Component Integrity & NSF Compliance
- Ductile Iron Performance: Utilizing high-strength ductile iron (Grade 65-45-12), we achieve a robust pressure boundary that resists the external loads of trench backfilling and traffic vibration.
- Potable Water Safety: The valve body is coated internally and externally with NSF 61 certified Fusion Bonded Epoxy (FBE). This ensures that the water quality remains uncontaminated by corrosion by-products, meeting the stringent "Lead-Free" requirements of the Safe Drinking Water Act.
- Zero-Leakage Sealing: The wedge is fully encapsulated in premium SBR or EPDM rubber. Our vulcanization process ensures a permanent bond to the ductile iron core, providing a "bubble-tight" seal at low pressure while resisting the compression set that causes leaks in lower-grade alternatives.

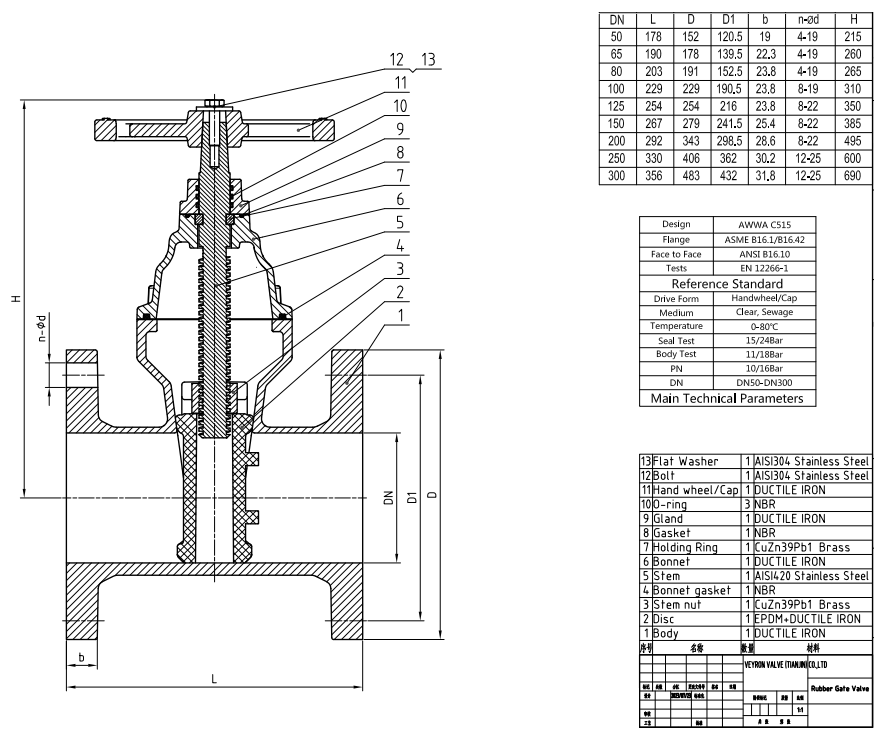

Technical Specifications
| Specification | Detail / Requirement |
|---|---|
| Design Standard | AWWA C515 / MSS SP-70 |
| Working Pressure | 200 PSI / 250 PSI / 300 PSI |
| End Connections | Flanged (ASME B16.1) or Mechanical Joint (MJ) |
| Certifications | UL Listed, FM Approved, NSF/ANSI 61 & 372 |
| Stem Material | Stainless Steel 304/420 or Silicon Bronze |
| Bolting | Stainless Steel 304 (Standard) |
Field-Proven Reliability & Maintenance
Maintenance crews prioritize Veyron Valve because of our Modular Stuffing Box design. The stem seals—comprising multiple O-rings and a dirt seal—are housed in a replaceable unit that can be serviced while the valve is under full line pressure (NRS models). Additionally, the use of delrin thrust washers reduces friction during operation, ensuring that even large-diameter valves (up to 24") can be opened by a single operator with minimal effort.
Versatile End Configurations
Whether your project requires traditional Flanged ends for pump station headers or Mechanical Joint (MJ) ends for HDPE/PVC pipe underground, Veyron Valve provides a precise fit. Our MJ ends are designed to accommodate standard gaskets and gland kits, ensuring a leak-proof connection that withstands the shifting dynamics of buried piping networks.
|
Place of origin |
Product name | material | Port size | face to face | Design standard | flanged drilling | Inspection | Working pressure | Application | guarantee period |
| Veyron Valve,Tianjin,China | Ball type check valve | DI body/DI+EPDM ball/DI bonnet/EPDM gasket | DN50-DN300 | DIN3202 F6 | DIN3202 F6 | DIN2501 ,EN1092-2 | DIN3230,EN12266-1 | low and medium pressure | water | 18 month |
