Rubber seated gate valve
We are specializing in butterfly valve, check valve, gate /Knife gate valve. we have professional pre-sale and after-sale technical support and perfect services.
Key Words：
Rubber seated gate valve
Classification：
E-mail:
Product details
The Evolution of Isolation: Resilient vs. Metal Seated
Traditional metal-seated valves often struggle with seat erosion and leakage caused by sediment accumulation in the body cavity. Veyron Valve’s Resilient Seated Gate Valve eliminates these issues through a "Zero-Leakage" design philosophy. By utilizing a fully encapsulated rubber wedge that compresses against the smooth, flat floor of the valve body, this valve achieves a bubble-tight shut-off every time. It is the definitive solution for municipal potable water, irrigation, and fire-main systems where absolute isolation is mandatory.
Wedge Integrity: The Vulcanization Advantage
The performance of a soft-seated valve is entirely dependent on the quality of its wedge.
- Precision Encapsulation: Our wedges feature a high-strength ductile iron core that is precision-vulcanized with a thick layer of EPDM or NBR. This bonding process ensures that the rubber will not peel or delaminate under high-velocity flow or pressure surges.
- Straight-Through Bore: Unlike old-style gate valves, our body interior is designed without a "well" or pocket at the bottom. The passage is completely unobstructed (Full-Bore), allowing the fluid to "scour" the seating area clean during operation. This prevents the buildup of debris that typically leads to seal failure in industrial networks.
Technical Specifications
| Feature | Professional Specification |
|---|---|
| Design Standard | EN 1171 / ISO 7259 / MSS SP-70 |
| Pressure Rating | PN10 / PN16 / PN25 (150-300 PSI) |
| Stem Sealing | Triple O-ring System (Replaceable under pressure) |
| Body Material | Ductile Iron GGG50 (EN-GJS-500-7) |
| Coating | Fusion Bonded Epoxy (FBE) Min. 250μm |
| End Connections | Flanged, Socket, or Spigot Ends |
Maintenance-Free Stem Technology
Veyron Valve utilizes a Maintenance-Free O-Ring Sealing System instead of traditional gland packing. Multiple O-rings protect the stem threads from process media and external contaminants. This design reduces operating torque by up to 40% compared to metal-seated alternatives, allowing for smoother manual operation and reducing the power requirements for electric actuators.

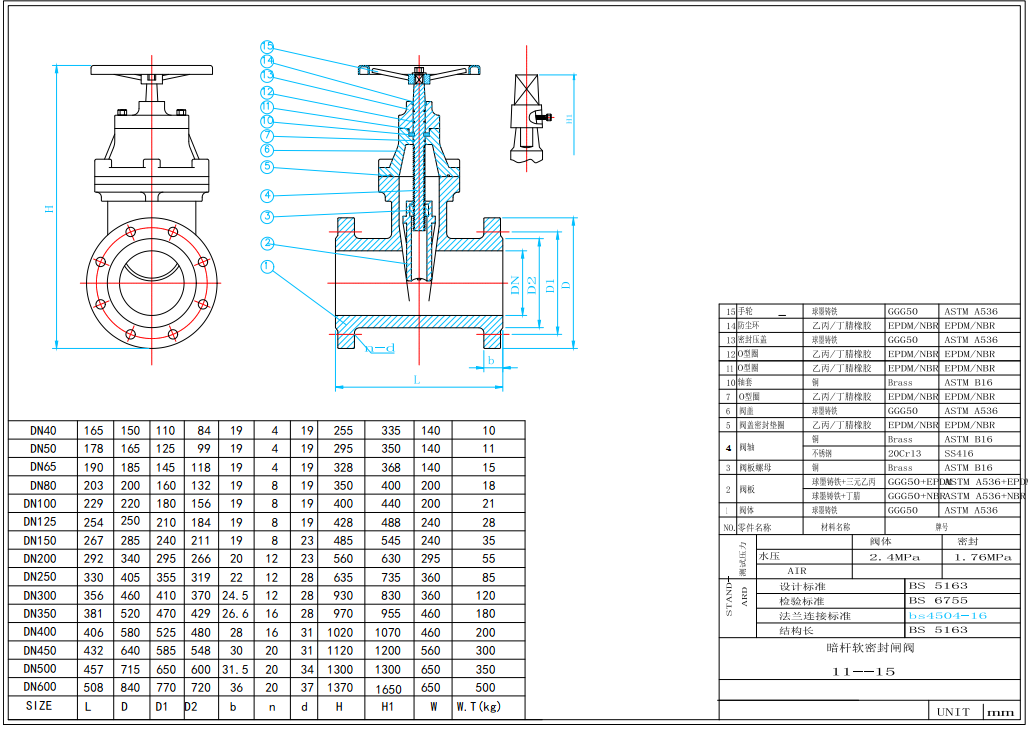

| Place of origin | Product name | material | Actuator | Port size | face to face | flanged drilling | Working pressure | Application | guarantee period |
| Tianjin,China | rising stem rubber seated gate valve | DI body/DI disc/EPDM seat/ss420 stem | handwheel/electric/pneumatic | DN50-DN1200 | ISO5752 | BS EN,GB,DIN,JIS ANSI | low and medium pressure | water,oil ,gas | 18 month |
